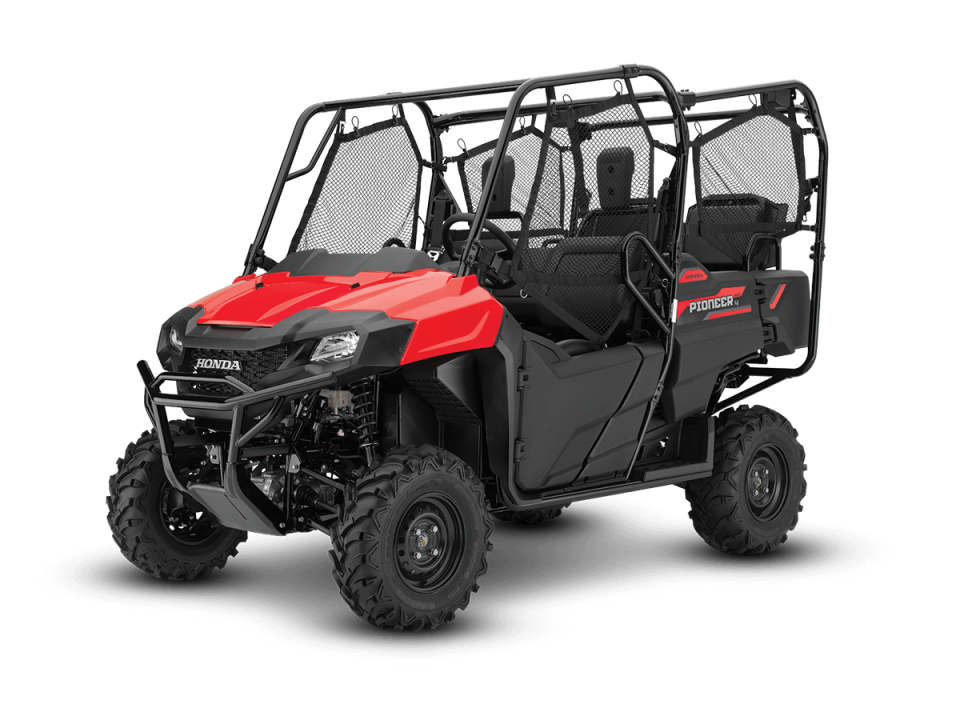

PIONEER 700-4P
Full of Honda technology and features like a liquid-cooled 700-class engine, double wishbone front-suspension, and durable automotive-style automatic transmission that can be switched to full manual mode. With the flexibility of 2, 3 or 4 person seating capacity, but with the manoeuvrability of a short wheel base, the Pioneer 700-4 is the ultimate do-it-all vehicle.
Our latest updates offer big Improvements in the cab including added storage (almost twice the storage of the previous model), new tilt steering wheel for easy access and larger cup holders. The updated dash switch panel and an LCD screen that's twice the size of the previous makes viewing important info easy.
Updated Electronic power steering increases torque assist by more than 25%, improves handling and features a "return to centre" function that improves responsiveness and reduces steering effort. The new radiator-fan vent, increased frame strength-to-weight ratio and revised front and rear driveshaft boots improve puncture resistance, reliability, durability and quality.
In the bed, there's a power outlet that provides 12v to the rear tray to power electronic devices like work lights, sprayers, compressors and more. While built in bed lights help when you need to load up in the dark.
The Pioneer 700 comes with reliability and dependability nobody can touch. Best of all, it’s designed, developed and expertly built to withstand Kiwi conditions.
TAKE A CLOSER LOOK
YOUR BIKE IN DETAIL
Engine Type | 675cc liquid-cooled Semi-dry sump, OHV single-cylinder four-stroke |
Displacement (CC) | 675cc |
Bore and Stroke | 102.0mm x 82.6mm |
Compression Ratio | 9.2:1 |
Ignition | Full-transistorized type with electronic advance |
Starter | Electric |
Gearbox | Automatic with hydraulic torque converter. Three drive modes include 2WD, 4WD and 4WD with all-wheel differential lock. |
Transmission | Automatic |
Suspension Front | Independent double-wishbone; 200mm travel |
Suspension Rear | Independent double-wishbone; 230mm travel |
Brakes Front | 200mm hydraulic disc |
Brakes Rear | 170mm hydraulic disc |
Tyres Front | 25 x 8 -12 |
Tyres Rear | 25 x 10 -12 |
Wheelbase | 1,950mm |
GroundClearance | 271mm |
Kerb Weight | 649kg including fluids and fuel |
Fuel Capacity | 30 litres, including 4.5 litres reserve |
Dimensions | 2,915mm(L) x 1,522mm(W) x 1,980mm(H) |
Carrier Capacity | 454kg |
Towing Capacity | 680kg |
